In industrial systems where both fluid transfer and particulate flow are involved, component design must reflect real operating demands rather than theoretical limits. Aluminum Alloy Diaphragm Pump Casting is frequently specified where structural accuracy and manageable weight are required, while a Dust butterfly valve is often integrated into adjacent sections of ducting or piping to control air or powder movement. Although these components serve different purposes, their manufacturing logic shares common priorities related to durability, consistency, and long-term stability.

The casting process used for aluminum alloy diaphragm pump bodies directly influences how the pump performs over time. During operation, diaphragm pumps subject their housings to alternating pressure loads that can expose internal stress points. A well-designed casting distributes these stresses through uniform wall thickness and strategically placed reinforcement ribs. Aluminum alloys respond well to this approach because they allow complex shapes to be formed without excessive post-processing.

From a metallurgical standpoint, aluminum alloys used in pump castings are selected for predictable mechanical behavior rather than peak strength values. The emphasis is placed on fatigue resistance and dimensional stability during repeated cycles. Impurities, gas entrapment, or uneven cooling during casting can lead to micro-defects that gradually propagate under load. For this reason, quality control during casting and subsequent machining plays a significant role in determining service life.

Once installed, the pump housing interacts with connected piping, valves, and mounting structures. Any misalignment or uneven stress transfer can affect both the pump and nearby components. When a Dust butterfly valve is installed downstream in a particulate handling system, flow resistance and pressure fluctuations may influence upstream conditions. Engineers often consider these interactions when specifying wall thickness and flange design for pump castings.

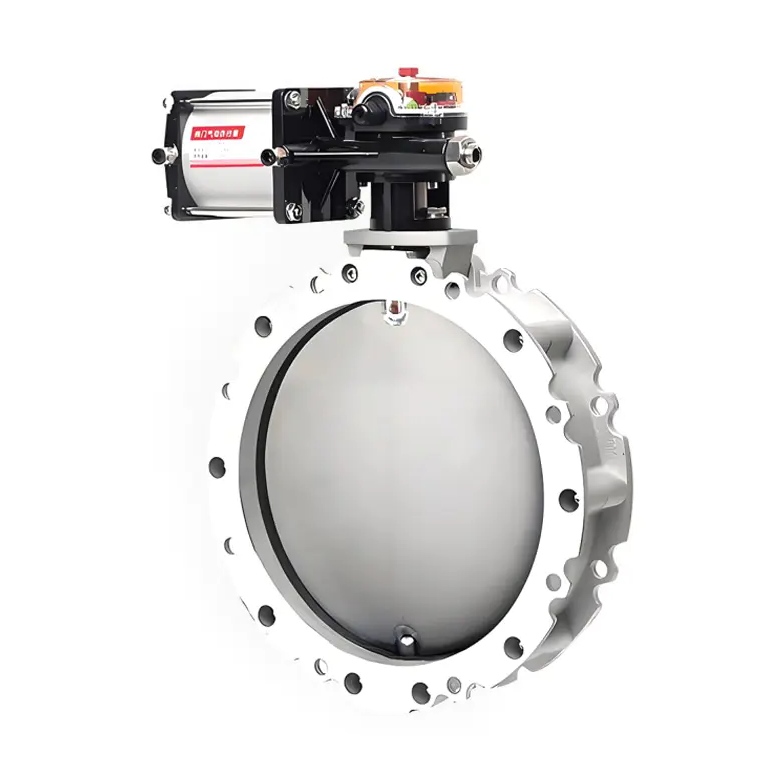

Dust butterfly valves operate under a different mechanical regime. Instead of cyclic internal pressure, the primary challenges involve abrasion and sealing consistency. Fine particles passing through the valve opening can erode disc edges and seat surfaces over time. Valve bodies must maintain alignment to prevent uneven contact between disc and seal. In systems where aluminum alloy pump housings are used nearby, material compatibility can simplify structural support and mounting design.

Manufacturing tolerances matter for both components. Aluminum alloy diaphragm pump castings require precise machining of sealing faces, bolt holes, and internal chambers. Dust butterfly valves rely on accurate shaft alignment and concentricity to ensure smooth rotation. When tolerances are poorly controlled, vibration and uneven wear may appear during operation, affecting system reliability.

Another shared consideration is surface treatment. Aluminum pump castings may receive anodizing or protective coatings to enhance corrosion resistance and reduce surface reactivity. Dust butterfly valves may use coated discs or liners to reduce adhesion of fine particles. While the specific treatments differ, both aim to maintain stable surface conditions under prolonged exposure to industrial environments.

In facilities handling powders, granules, or mixed-phase materials, system cleanliness also becomes relevant. Aluminum alloy pump housings with smooth internal surfaces are easier to clean during maintenance, reducing residue buildup. Dust butterfly valves benefit from disc profiles that minimize pockets where particles can accumulate. Design choices that support cleaning and inspection reduce the likelihood of operational disruptions.
